HG-50 HG-70 HG-100 HG-50JN HG-70JN HG-100JN

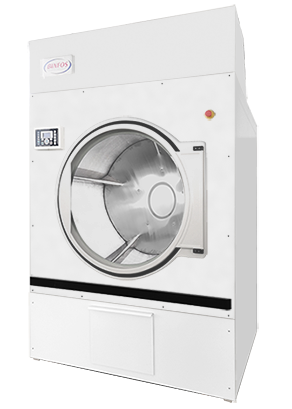

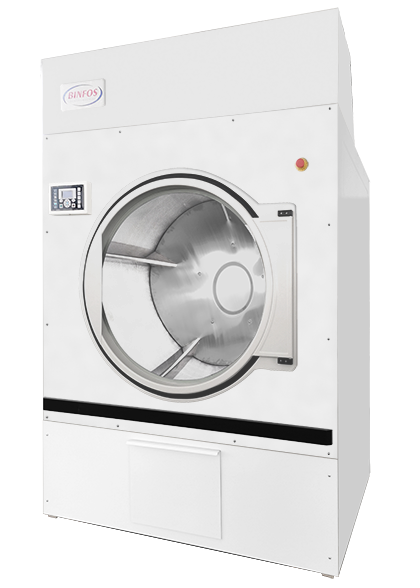

Rapidly energy-saving Tumble dryer
HG rapidly energy-saving tumble dryer has multiple features such as short drying time, high drying efficiency, easy and safe use, and durability. It is an ideal drying machine for hotels, hospitals, laundry shops, factories, mines, nuclear power plants, army, schools, and central washing factories and other enterprises and institutions.
Main feature:

Efficient—45 minutes/cycle

Energy saving —Full thermal insulation, rapidly air entering

Convenient—computer control, one-button start

Reliable—professional design, fine processing

VIEW MOER
Rapidly energy-saving Tumble dryer
Rapidly energy-saving Tumble dryer

Advantages

Specifications

Core advantage
Rapidly energy-saving Tumble dryer
Optional independent hot and cold air switch
Optional independent hot and cold air switch
The steam heating type has an optional independent hot and cold air switching structure. When drying is completed, the switching device automatically switches to the cold air state, and the cold air directly enters the drum, reducing the temperature of the linen in the shortest time. At the same time, avoid temperature drift when the drying temperature reaches the set temperature.
PLC program control
PLC program control
Dedicated computer for clothes dryers, 5 sets of preset programs, easy to operate and quick to use.
Easy clean lint
Easy clean lint
Drawer-type plush collection, pull it out for cleaning, easy and quick to operate.
Low failure rate
Low failure rate
The main shaft and bearing seat are thickened to make the equipment run more stable and reduce the failure rate.
Safety door lock
Safety door lock
The safety door lock is equipped with a sensor, and the device automatically stops operating when the door lock is opened to prevent safety accidents.
Large door
Large door
The large-diameter loading door design is ergonomically located at the height of the ground, making it easy to load and unload linen.
Long service life
Long service life
The screw adjustment structure is adopted to adjust the height position of the drive shaft axis according to the belt tension, thereby extending the service life of the belt.
Easy maintain
Easy maintain
Adopting a graded transmission structure, the European standard withdrawal taper pulley is matched with 7 imported V-belts, which is safe, reliable and easy to maintain.
Thermal insulation design
Thermal insulation design
The whole machine is equipped with thermal insulation design between internal and external in all directions to reduce heat radiation, reduce heat loss in the inner cylinder during drying, and save energy consumption.
Fast drying speed
Fast drying speed
The large machine is equipped with 2 large fans, using a turbine air outlet design, which has fast air suction speed, large air volume and low noise, rapid exchange, and fast drying speed, one cycle is less than 45 minutes.

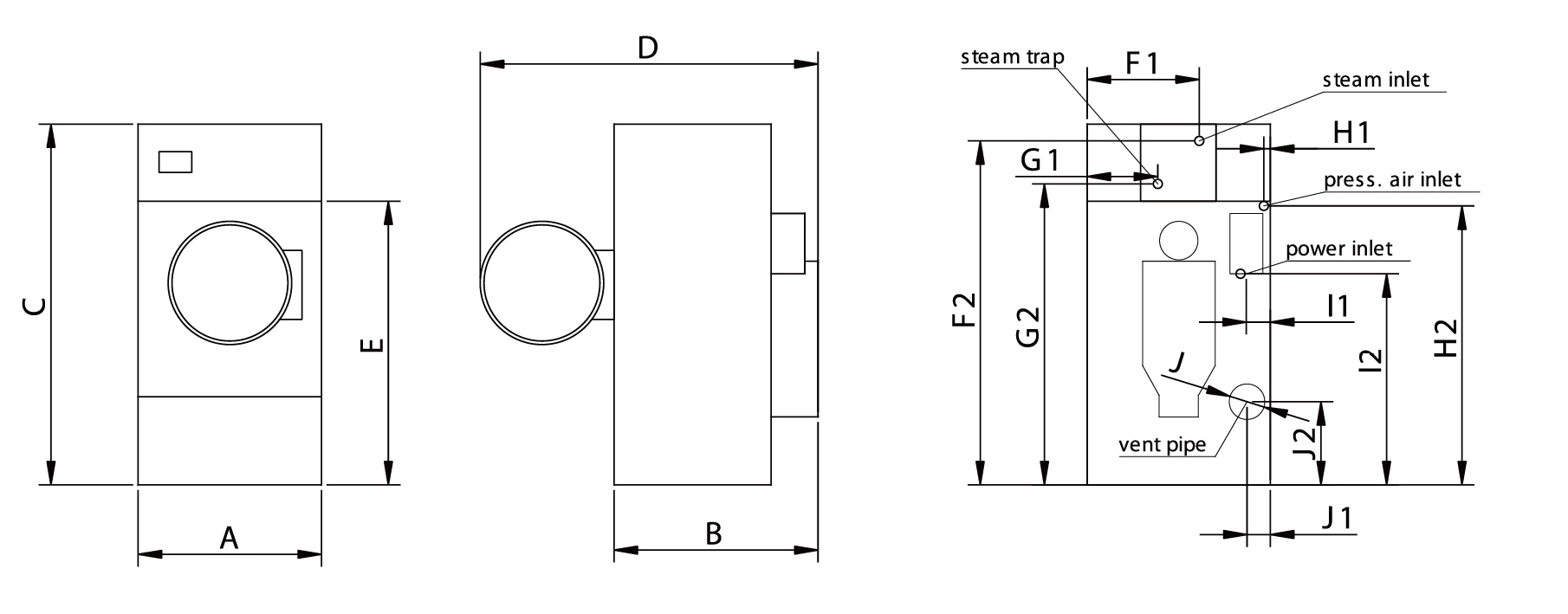

Outline of tumble dryer

Tumble Dryer-50-100kg_05bfd81dd4109d4fad5dc1f8d512abf1-4.jpg

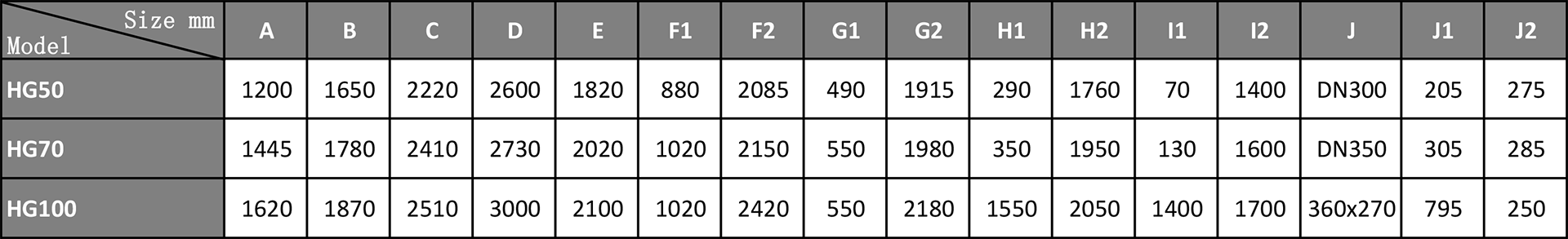

Overview, Dimensions and Connection Port Position

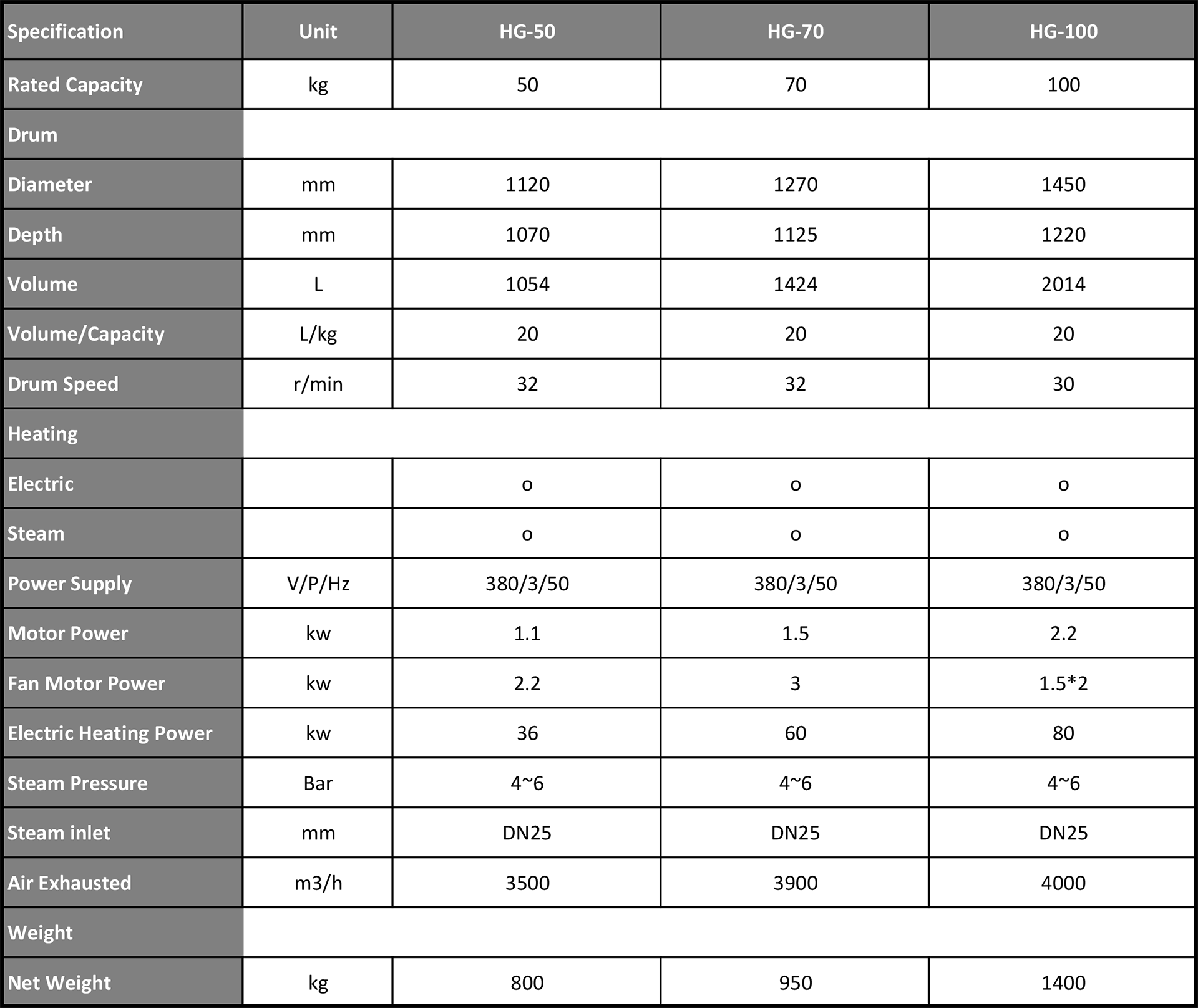

Main Technical Data
