GLS-25|GLS-35|GLS-50

Barrier washer dryer

A barrier washer extractor ensures the most reliable protection from spreading germs and bacteria, as it avoids any contamination of the linen by providing maximum disinfection. The washer extractor is designed to be installed into the wall, which provides the loading of the linen on the soil side and unloading on the clean side.It can be applied to hospitals, social welfare institutions, clean room laundry rooms, food and pharmaceutical processing enterprises and other places.

Main feature:

The soil side and clean side separated by wall

G-force up to 320G

Fully editable programs

Integrated washing/extracting/drying on it

VIEW MOER

Advantages

Specifications

Core advantage

Quality insurance

With great service, 12 months warranty and parts supply all the life.

Safe protection

Weighing automatically and the weight digitally displayed during loading. This not only saves time, energy and resources but avoids overloading and underloading, extending the washer's lifetime.

Fast shift time

The high extract force can reach 320G, achieving efficient dewatering and saving time and energy required for drying.

Efficient construction

Horizontal drum structure, extra large diameter, increases the pating force of laundry operation. The width of the outer door allows for ergonomic loading and unloading of linen. The inner drum door lock linkage structure is double self-locking, easy to operate and difficult to misoperate. Automatic locking and unlocking of outer drum door is present on all machines. The inner drum is automatically positioned, making loading and unloading of linen easier and faster.

Easy Operation

Laundries can set up specifically desired washing programs with customized cycle times, water levels, temperatures and extract speeds, allowing a variety of linen types and volumes to be processed.

Heating evenly

Steam heating, electric heating and combined (steam and electric) heating are optional. When drying, the heated airflow enters the inner cavity of the tumbler laterally and directly heats the clothes, evenly, quickly and efficiently.

Energy Saving

Thanks to the design having minimal space between the outer and inner drum, the amount of free water is remarkably low. This allows for a rapid temperature rise of the water, while keeping the water, energy, and chemical consumption very low.

304 stainless steel

All parts of the machine that come in direct contact with water are made of top quality AISI 304 stainless steel material.A shock-absorbing system combining airbags and dampers to maximize vibration absorption and reduce floor and laundry building loads.

Technical data

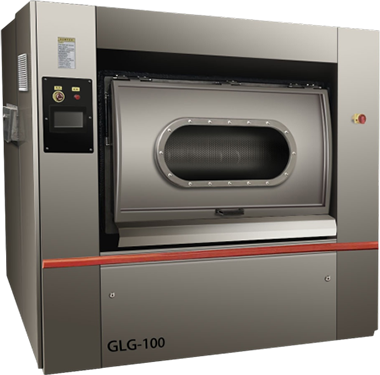

Model	GLG-50	GLG-100
Capacity kg	50	100
Drum Size mm	850*1010	1060*1258
Rotary Speed r/min	40	36
Power kw	5.5	11
Medium extract rpm	375	345
High extract rpm	750	698
Noise Db	<80	<80
Weight kg	2070	3525
